01 / Machine view
BUILT AROUND YOUR APPLICATION
Two print stations for cooktop glass.
This two-colour screen-printing machine is developed for glass cooktops. Two printing units combine servo-operated vertical and conveyor movements with pneumatic squeegee operation and PLC/HMI control.
The published reference covers glass from 150 × 150 mm to a maximum print area of 500 × 500 mm, with a stated glass thickness of 3–8 mm. APL lists approximately 300 pieces per hour for the reference arrangement. Handling can be coordinated with an IR dryer; confirm the complete line sequence and job-dependent output with APL.

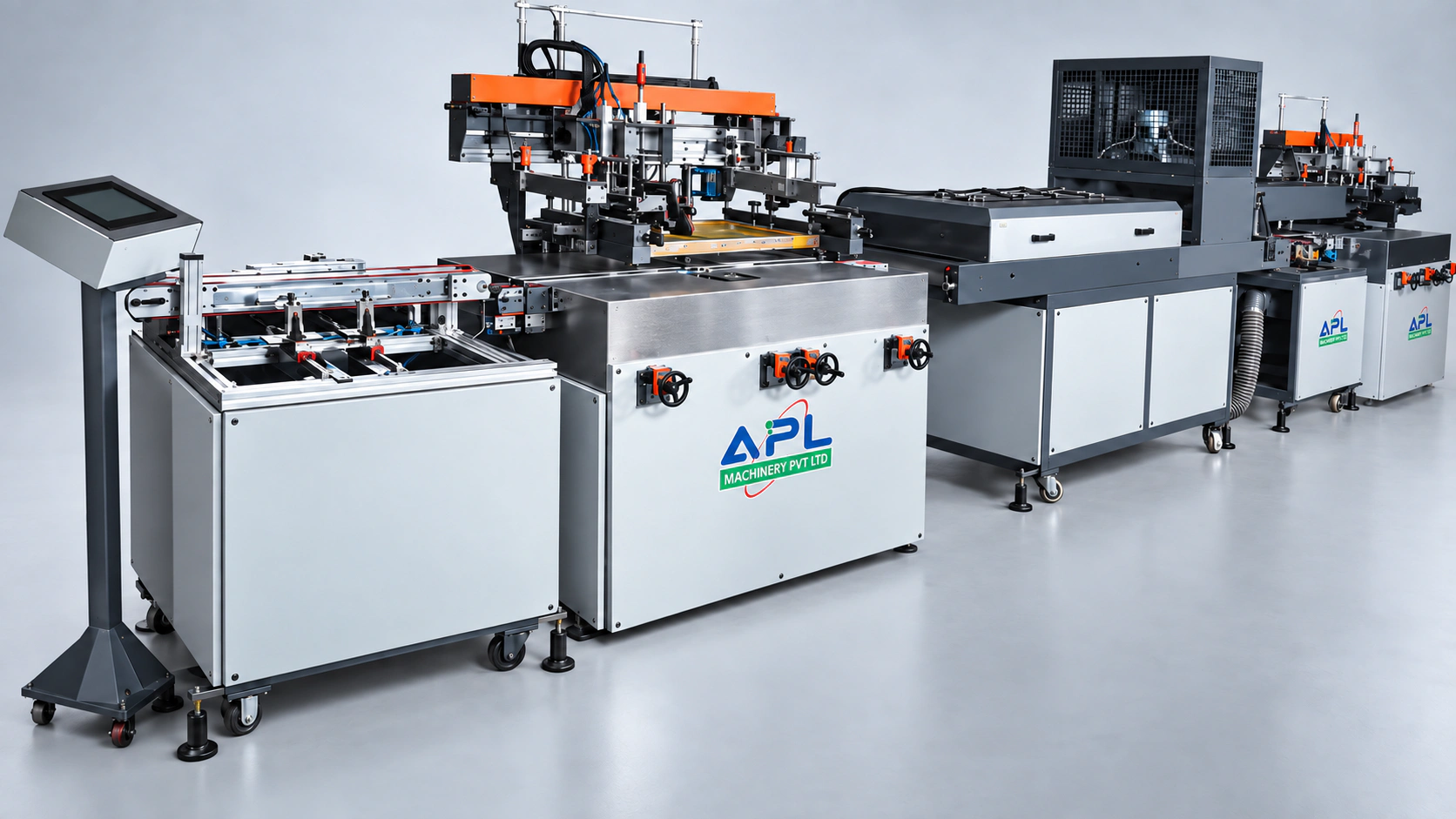

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Two printing units+
Sequence two colour stations within the glass-printing workflow.
02Servo movement+
Servo drives handle the published up/down and conveyor operations.
03Operator controls+
A PLC with HMI provides control of the machine sequence.
04Line coordination+
Discuss manual initial feeding and transfer from the IR-drying stage in the complete arrangement.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Specification | Reference configuration |
|---|---|
| Printing units | 2 |
| Maximum printing area | 500 × 500 mm |
| Minimum glass size | 150 × 150 mm |
| Glass thickness | 3–8 mm |
| Printing table | 750 × 650 mm |
| Screen frame | 800 × 900 mm |
| Published production rate | Approximately 300 pieces/hour |
| Power supply | 415 V, 3 phase, 50 Hz |
| Power | 3–4 kW |
| Air pressure | 6–8 bar |
| Machine dimensions | 1,950 × 1,300 × 1,800 mm |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Glass dimensions, thickness and sheet handling
- Ink or coating system and intended end use
- Printing sequence, drying requirements and line layout
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
This two-colour screen-printing machine is developed for glass cooktops. Two printing units combine servo-operated vertical and conveyor movements with pneumatic squeegee operation and PLC/HMI control.
What should I share for a quotation?+
Please send glass dimensions, thickness and sheet handling; ink or coating system and intended end use; printing sequence, drying requirements and line layout. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
