APL COLLECTIONAutomatic Glass Screen Printing Line
39 / 58

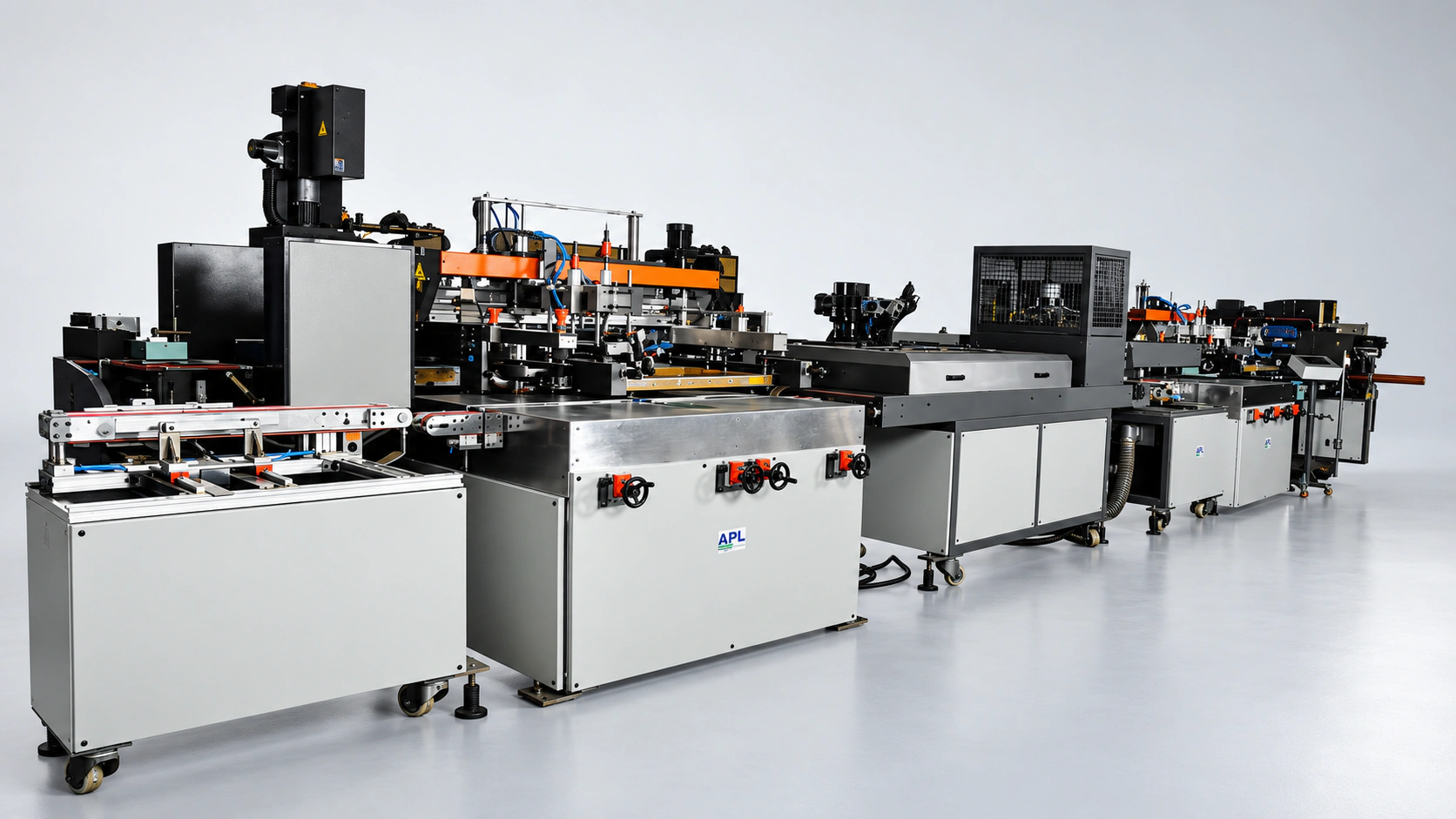

01 / Machine view
BUILT AROUND YOUR APPLICATION
Precision handling for architectural and automotive glass.
The Automatic Glass Screen Printing Machine combines glass positioning, screen printing and outfeed in a three-section line. APL describes a synchronised vertical screen lift driven through four ball-screw jacks, with synchronous belts handling glass through the process.
The range is presented for architectural glass and automotive windscreens, side windows and rear glass. PLC and HMI controls coordinate the electrical and pneumatic systems. Published maximum print formats extend from 900 × 1,800 mm to 2,000 × 3,000 mm, with the final handling and dryer arrangement selected for the glass.

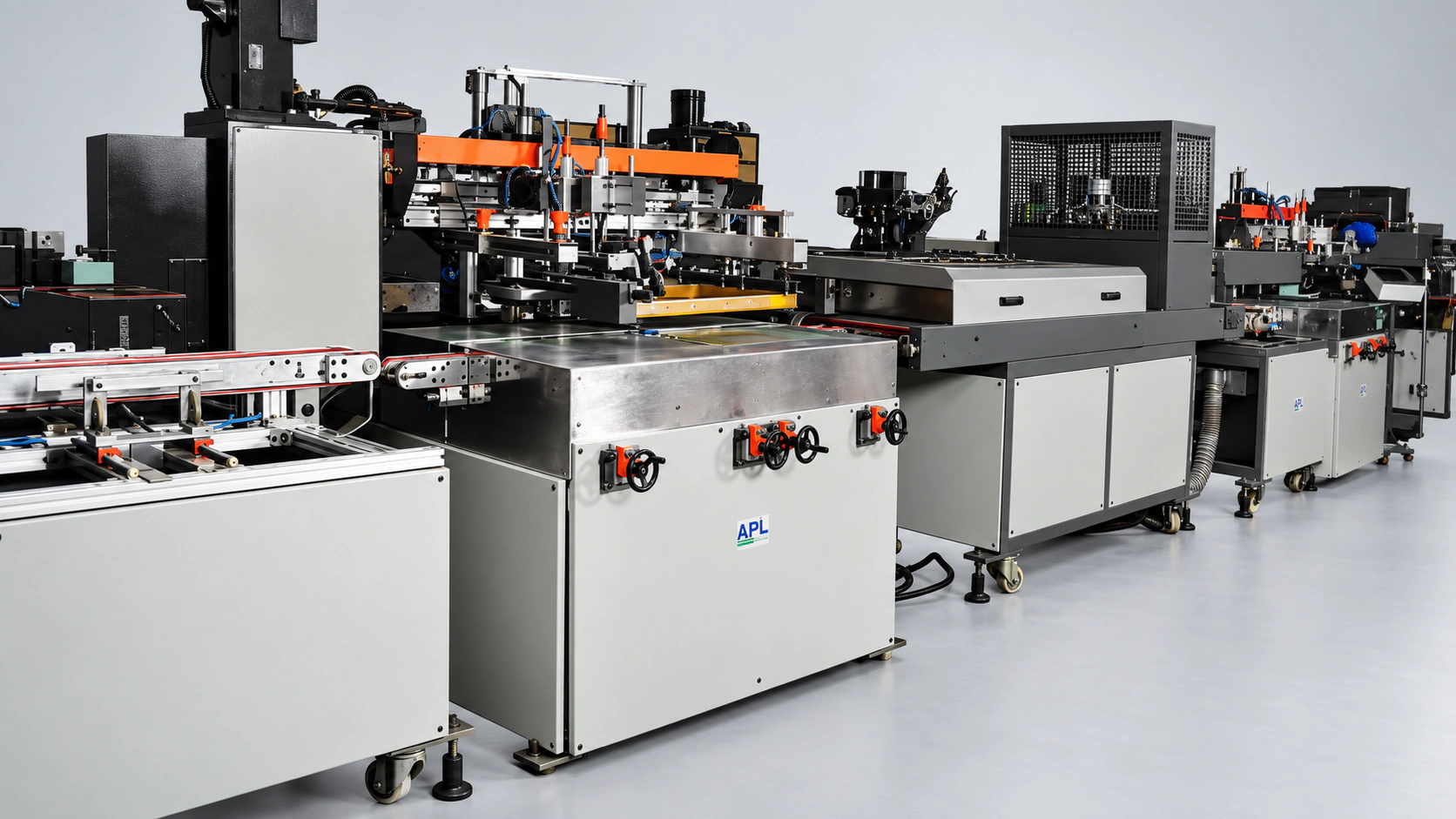

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Three-stage handling+
A pre-centring and positioning section feeds the printing section before the glass exits toward the next process.
02Synchronised screen lift+
Four ball-screw jacks provide a coordinated vertical lift arrangement.
03Belt conveyance+
Synchronous belts transfer the glass through the machine.
04Integrated controls+
PLC and HMI operation coordinate the printing and handling sequence.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Model | Max. Printing Size | Min. Printing Size | Printing Table Size** | Power (KW) | Machine Size** |
|---|---|---|---|---|---|
| APL 90180 | 900 x 1800 mm | 500 x 500 mm | 1550 x 2500 mm | 6-10 KW | 7000x2300x1300 mm |
| APL 130250 | 1300 x 2500 mm | 500 x 500 mm | 1900 x 3200 mm | 6-10 KW | 9000x2700x1300 mm |
| APL 200300 | 2000 x 3000 mm | 500 x 500 mm | 2600 x 3700 mm | 6-10 KW | 10000x3500x1300 mm |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Glass dimensions, thickness and sheet handling
- Ink or coating system and intended end use
- Printing sequence, drying requirements and line layout
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
The Automatic Glass Screen Printing Machine combines glass positioning, screen printing and outfeed in a three-section line. APL describes a synchronised vertical screen lift driven through four ball-screw jacks, with synchronous belts handling glass through the process.
What should I share for a quotation?+
Please send glass dimensions, thickness and sheet handling; ink or coating system and intended end use; printing sequence, drying requirements and line layout. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
