Hybrid UV Drip-off Machine
28 / 58
Build texture in two coordinated stages.
The Hybrid UV Drip-off Machine combines an offset unit and a flexo unit for offline textured coating. It supports drip-off, spot, selective non-coated areas and full coating on printed substrates.
A water-cooled UV interdeck cassette provides partial curing after the first station. A combination UV, IR and hot-air dryer follows the second station, with an automatic stacker completing the sequence. Two published formats cover different sheet and coating sizes at a stated maximum of 6,000 impressions per hour.

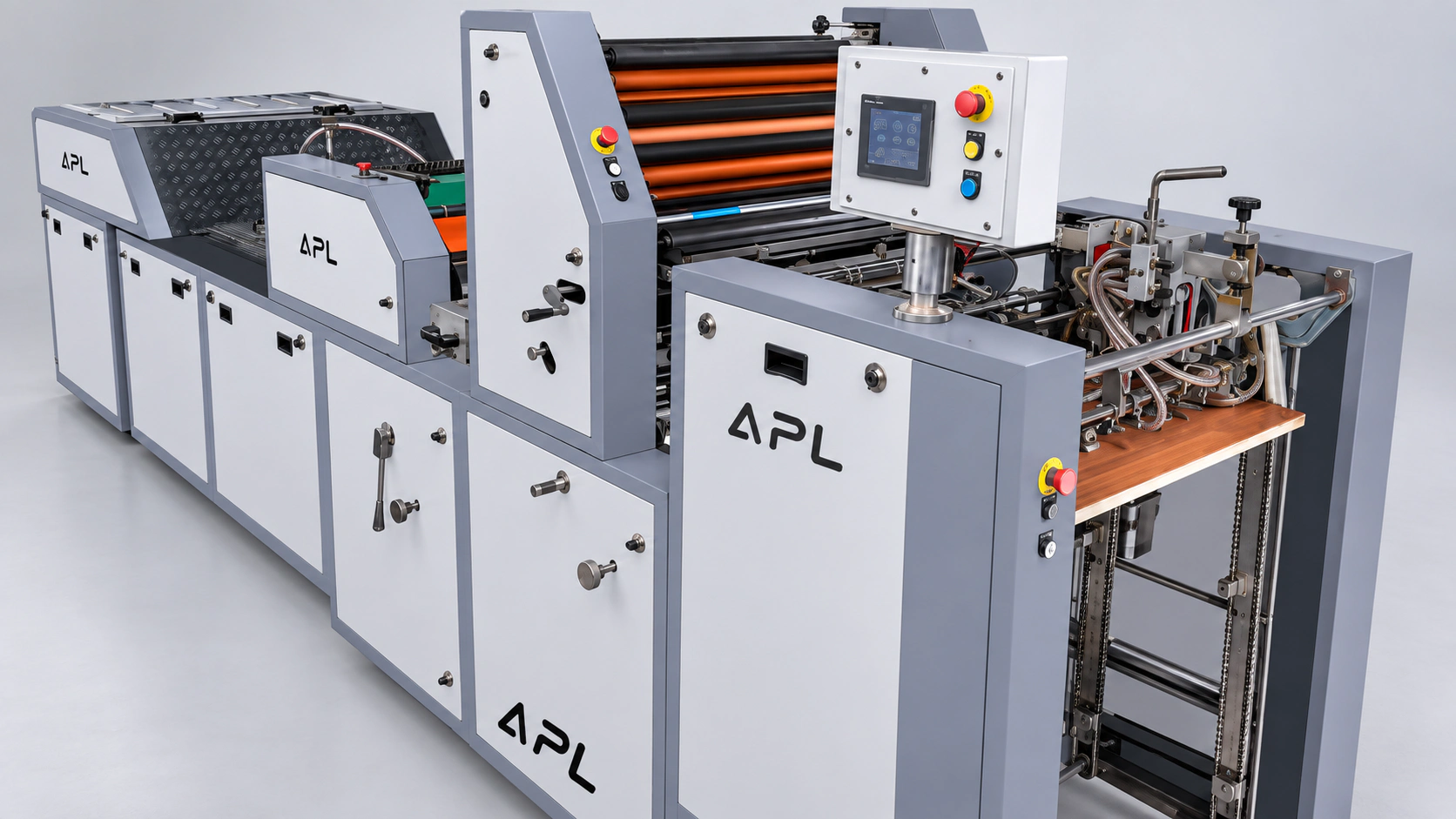

A CLOSER LOOK / Detail viewPurpose in
every detail.
01Two-stage process+
Sequence the offset and flexo coating units to develop the selected texture.
02Intermediate curing+
A water-cooled UV interdeck cassette follows the first coating station.
03Combination drying+
The second stage is followed by UV, IR and hot-air drying as appropriate.
04Format choice+
Published 2030 and 2840 configurations provide different sheet sizes and coating areas.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Specification | APL UV 2 × 2030 | APL UV 2 × 2840 |
|---|---|---|
| Maximum Sheet size | 530 x 785 mm | 725x 1016 mm |
| Coating Area | 500 x 750 mm | 700 x 1000 mm |
| Paper weight | 100 to 400 gsm | 100 to 400 gsm |
| Power | 35 KW | 50 KW |
| Extra Power for IR Lamp | 12 KW | 16 KW |
| Published speed | 6,000 impressions/hour | 6,000 impressions/hour |
| First station | Intermediate cure | Second station | Final drying |
|---|---|---|---|
| UV Primier | UV Lamp | UV Full or Spot | UV Lamps |
| UV Texture | UV Lamp | UV Spot | UV Lamps |
| UV Printing(on metalized substrate) | UV Lamp | UV Spot or Full | UV Lamps |
| UV Printing | UV Lamps | Aqueous coating | IR Lamps |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Substrate format, basis weight and coating chemistry
- Full, spot, texture or other required finishing effect
- Target output and existing feeding or drying equipment
Before your
next move.
Which applications is this machine designed for?+
The Hybrid UV Drip-off Machine combines an offset unit and a flexo unit for offline textured coating. It supports drip-off, spot, selective non-coated areas and full coating on printed substrates.
What should I share for a quotation?+
Please send substrate format, basis weight and coating chemistry; full, spot, texture or other required finishing effect; target output and existing feeding or drying equipment. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
