APL COLLECTIONGallium Lamp UV Curing System
44 / 58

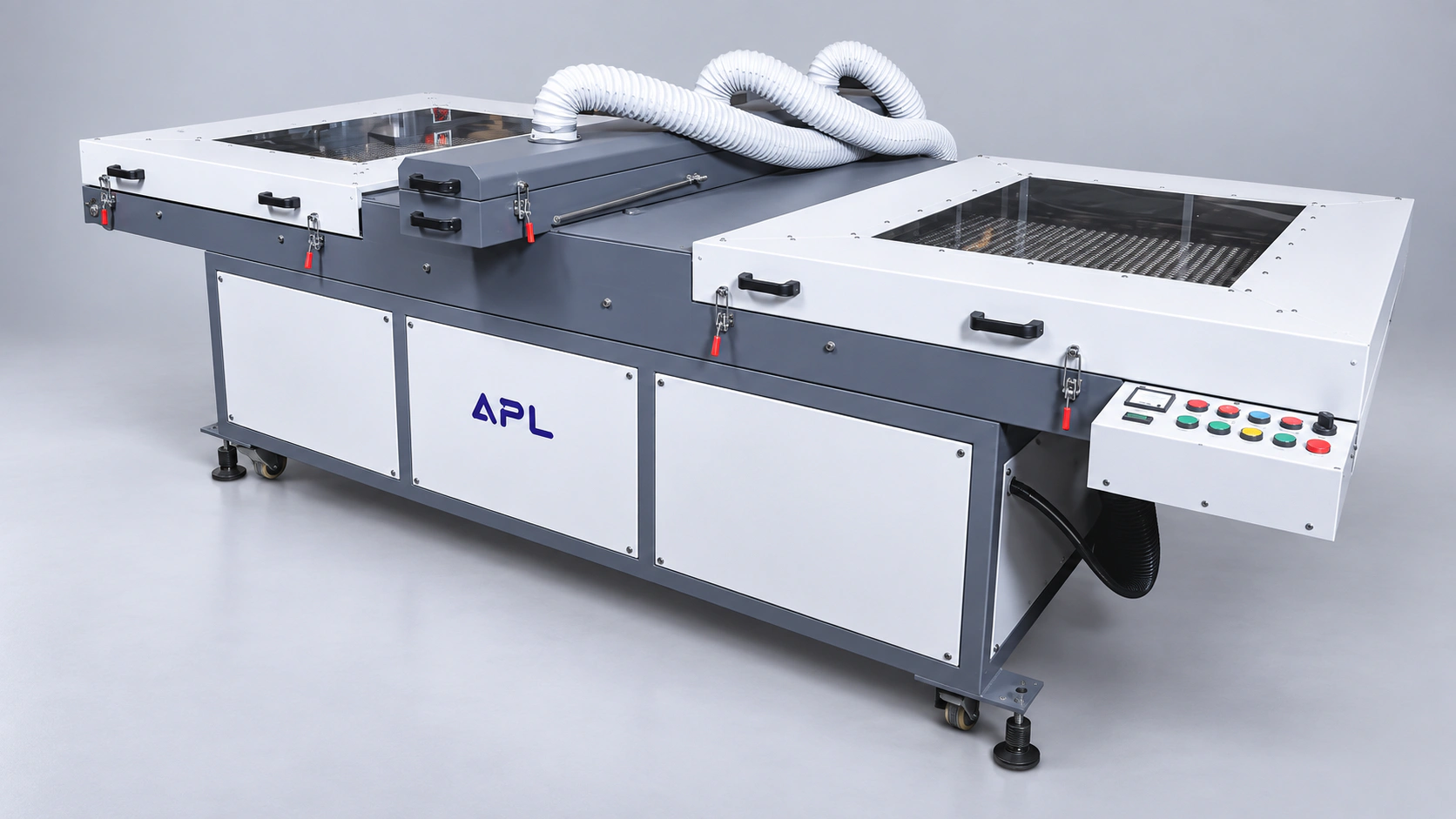

01 / Machine view
BUILT AROUND YOUR APPLICATION
A UV conveyor for deeper-curing applications.
The Gallium UV Conveyor is presented for white inks and applications requiring deeper UV curing. The reference configuration combines the lamp, reflector and transformer with blower cooling and AC frequency control of the conveyor.
Stepless intensity adjustment, lamp-current indication and lamp-hour monitoring are described. The ink formulation, film thickness and substrate determine the necessary exposure, so discuss the process with APL before selecting lamp output, conveyor speed and the connected printing equipment.

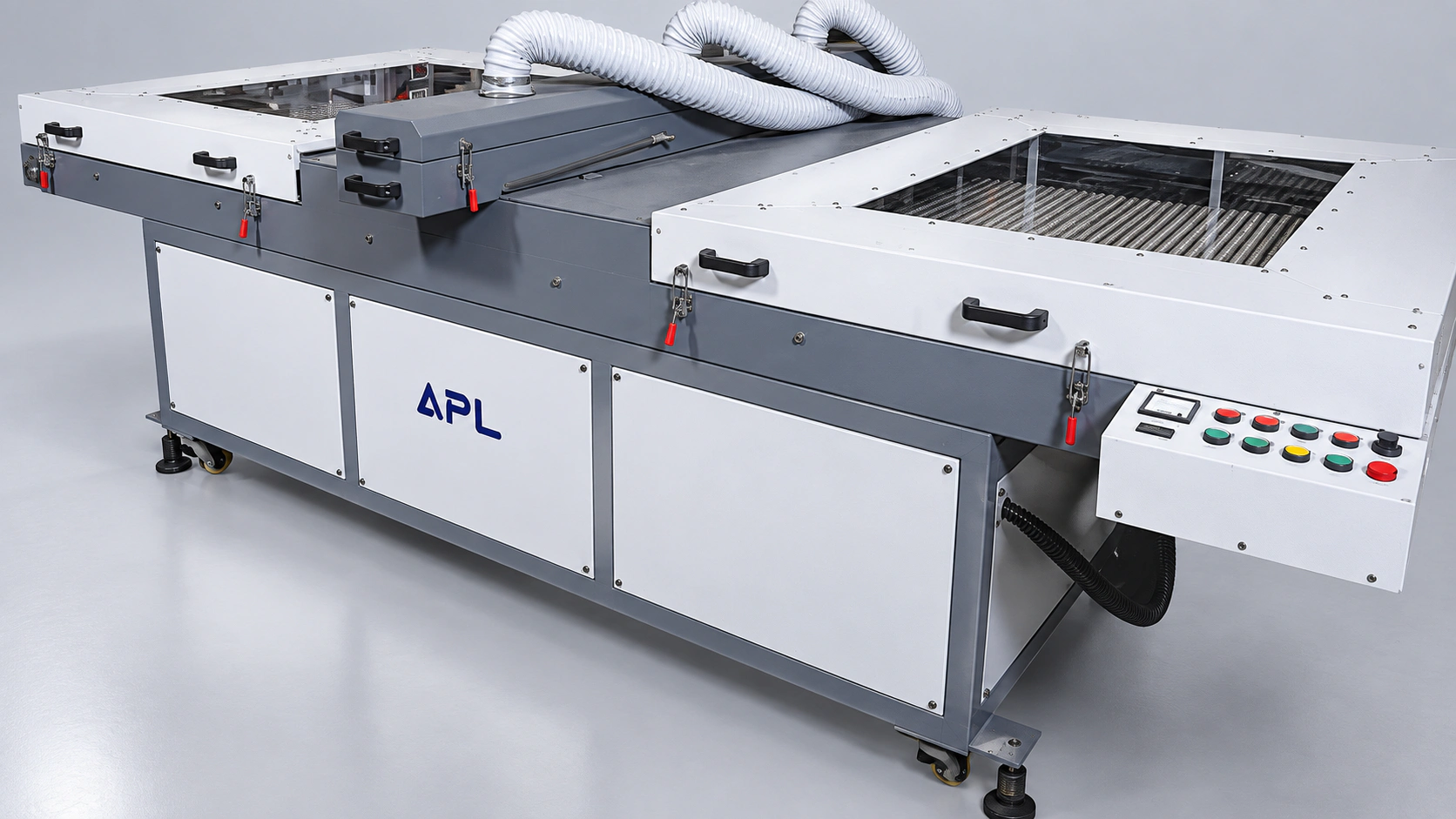

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Gallium UV source+
The lamp arrangement is described for white inks and deeper-curing applications.
02Intensity adjustment+
Stepless output adjustment supports process setup.
03Variable-speed transfer+
An AC frequency drive controls conveyor movement through the curing section.
04Lamp monitoring+
The published features include lamp-current and operating-hour indication.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Configuration detail | Published product profile |
|---|---|
| UV type | Gallium lamp |
| Adjustment | Stepless intensity |
| Supply listed | 415 V AC |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Glass dimensions, thickness and sheet handling
- Ink or coating system and intended end use
- Printing sequence, drying requirements and line layout
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
The Gallium UV Conveyor is presented for white inks and applications requiring deeper UV curing. The reference configuration combines the lamp, reflector and transformer with blower cooling and AC frequency control of the conveyor.
What should I share for a quotation?+
Please send glass dimensions, thickness and sheet handling; ink or coating system and intended end use; printing sequence, drying requirements and line layout. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
