Digital Flatbed Printer
14 / 58
Digital decoration for flat surfaces.
APL’s UV Flatbed Printer Series combines a piezo printhead, UV ink and a water-cooled LED UV drying system. It is presented within the wood-finishing range for digital decoration of flat substrates.
The reference configuration lists a 1,000 ml continuous ink supply and software-controlled printhead voltage. Common artwork formats include TIFF, BMP, PDF, EPS and JPEG. Confirm the bed format, material thickness and ink configuration for your particular board or panel application.

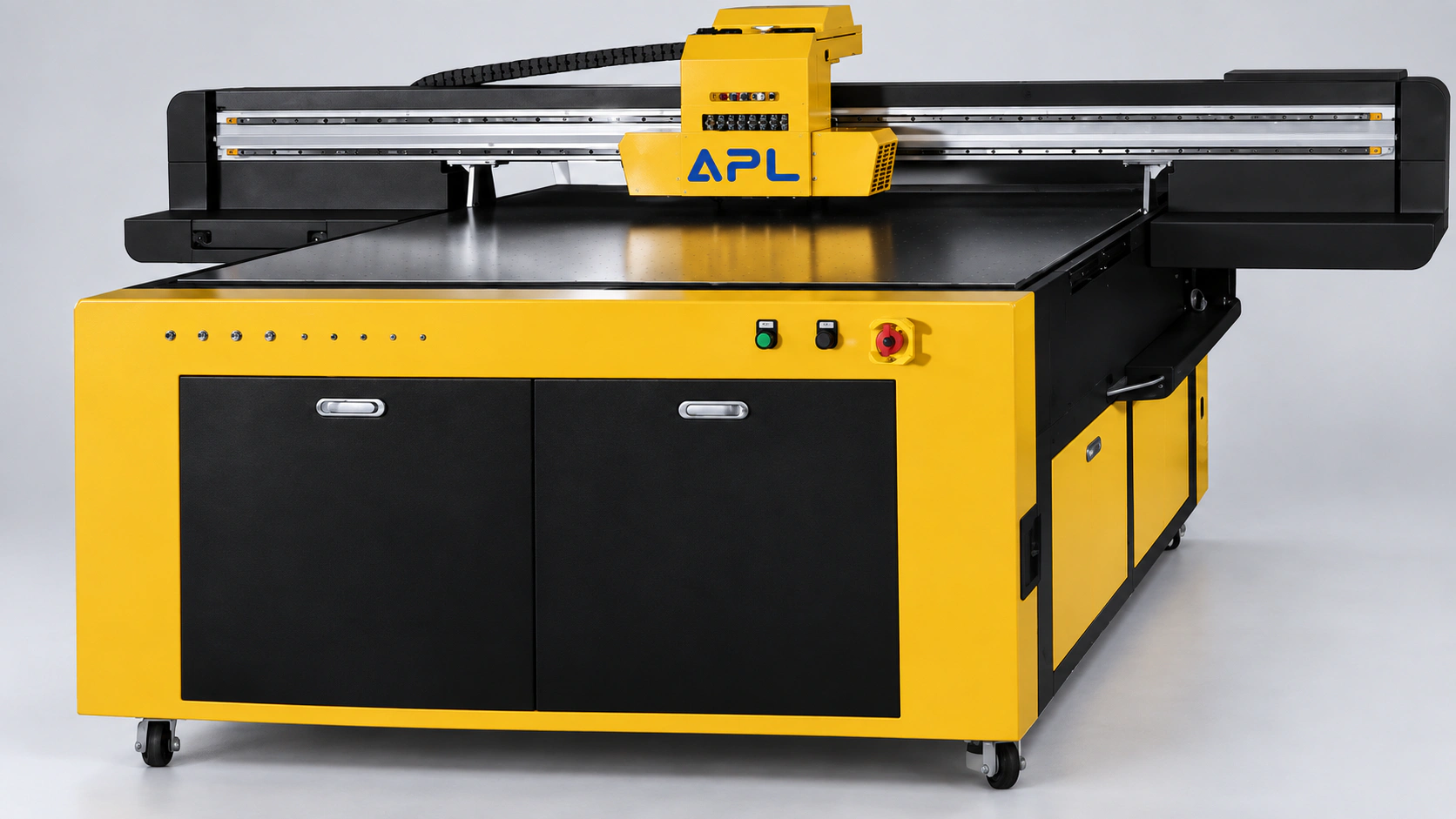

A CLOSER LOOK / Detail viewPurpose in
every detail.
01Piezo printhead+
The published flatbed series uses piezo printhead technology with software voltage control.
02Continuous ink supply+
A 1,000 ml CISS arrangement supplies UV ink to the printing system.
03Artwork compatibility+
Published file formats include TIFF, BMP, PDF, EPS and JPEG.
04LED UV drying+
A water-cooled LED UV lamp cures the ink within the printer’s process.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Specification | Reference configuration |
|---|---|
| Printhead technology | Piezo |
| Ink | UV ink |
| Ink supply | 1,000 ml CISS |
| Drying system | Water-cooled LED UV |
| Artwork formats | TIFF, BMP, PDF, EPS, JPEG |
| Operating temperature | 20–28°C |
| Operating humidity | 20–60% RH |
| Electrical supply | AC 220 V, 50 Hz |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Board dimensions, thickness and handling method
- Coating or adhesive system and target surface finish
- Line speed, transfer height and available floor space
Before your
next move.
Which applications is this machine designed for?+
APL’s UV Flatbed Printer Series combines a piezo printhead, UV ink and a water-cooled LED UV drying system. It is presented within the wood-finishing range for digital decoration of flat substrates.
What should I share for a quotation?+
Please send board dimensions, thickness and handling method; coating or adhesive system and target surface finish; line speed, transfer height and available floor space. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
