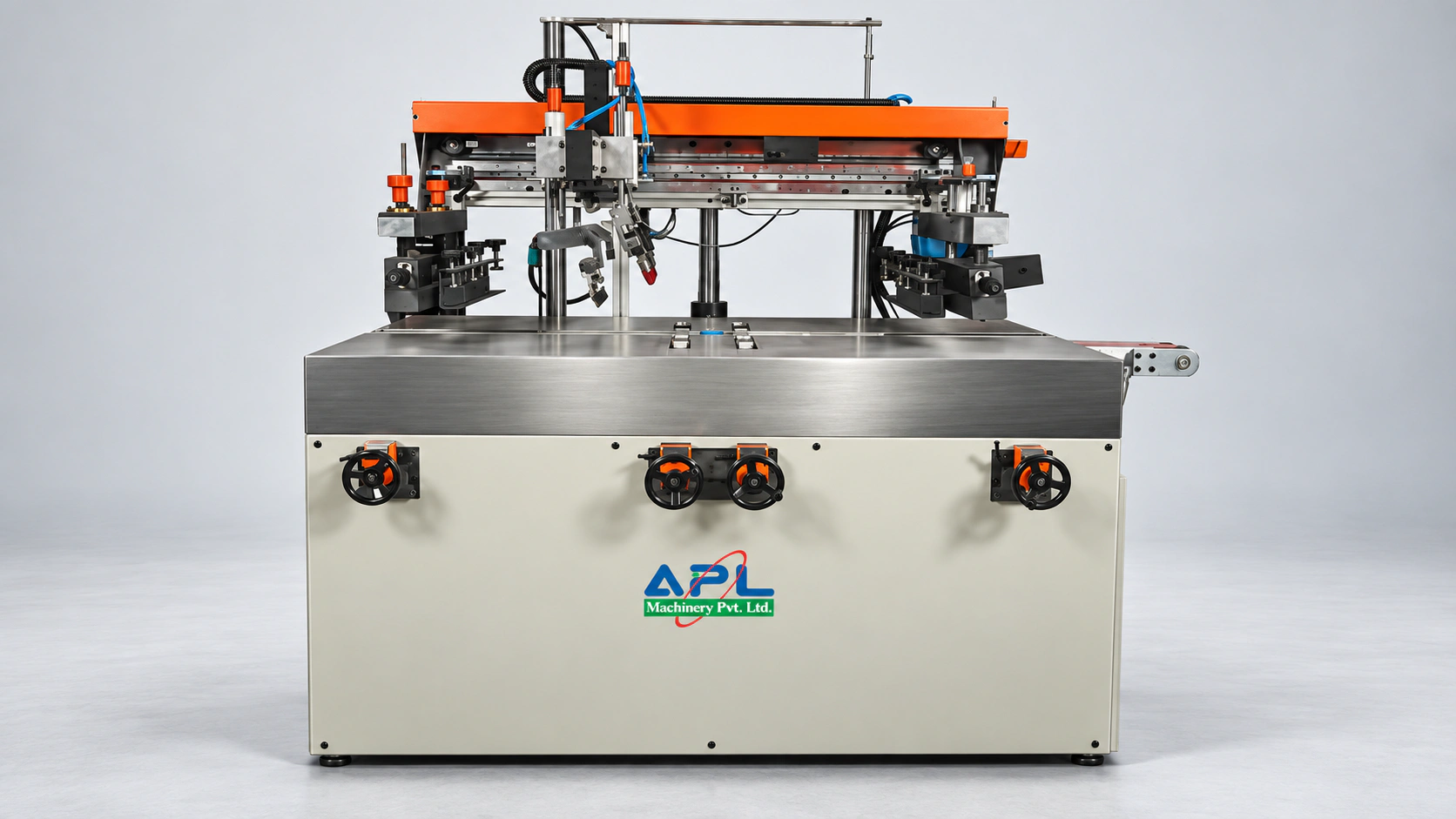

01 / Machine view
BUILT AROUND YOUR APPLICATION
Centre the glass. Register the print.
APL’s Semi Automatic Centering Glass Screen Printing Machine combines an adjustable printing table with pneumatic controls and linear guides. Automatic centring and micro-registration pins help establish the glass position before printing.
The published APL 4560, 5075 and 6090 models provide maximum printing areas of 450 × 600, 500 × 750 and 600 × 900 mm respectively. A servo-driven take-off arrangement is also described. Select the working area and glass handling around the print image, actual sheet dimensions and required drying sequence.

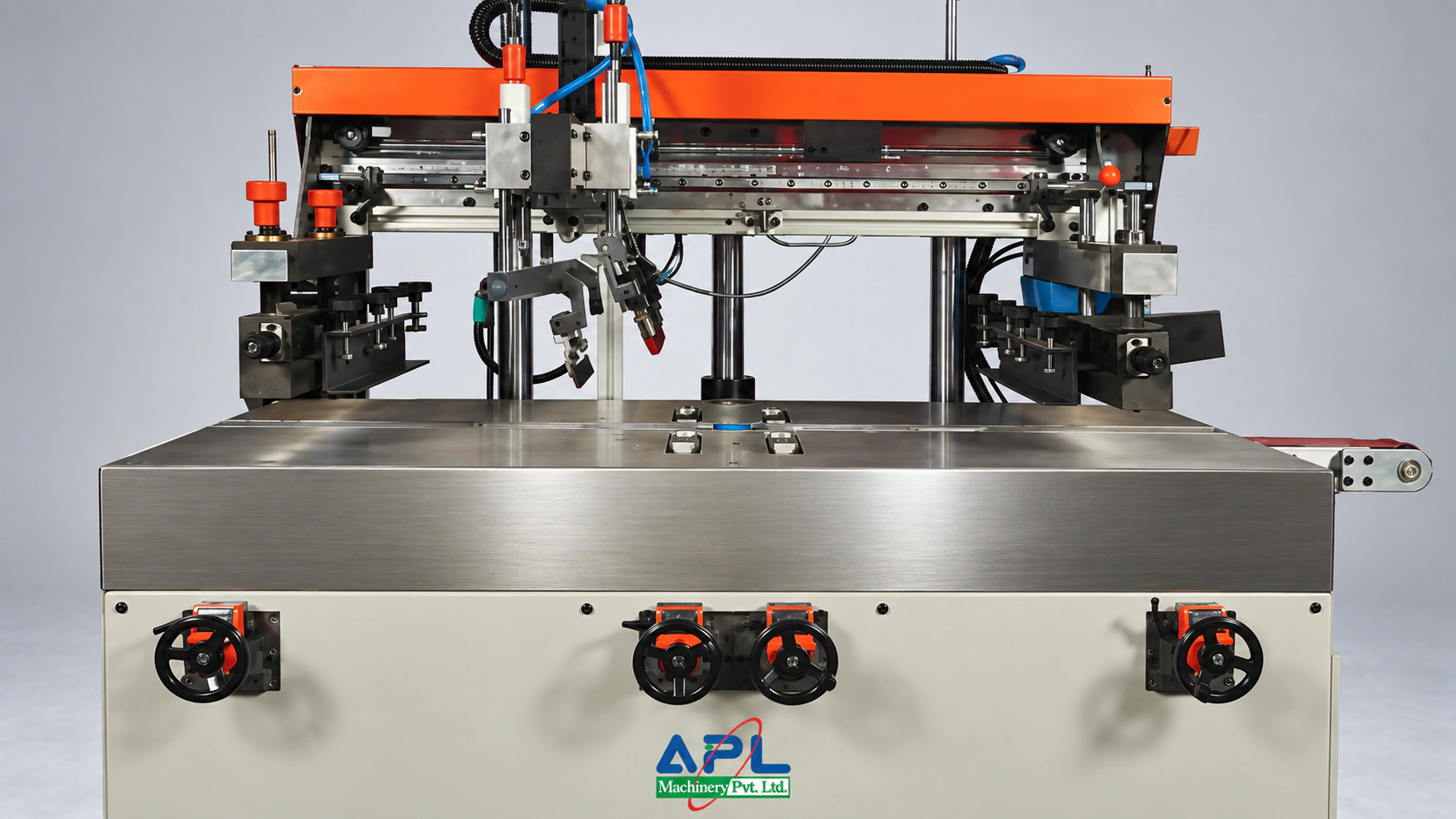

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Automatic centring+
Position the glass with the centring arrangement before the print cycle.
02Micro-registration+
Fine adjustments and registration pins support job setup.
03Guided movement+
Linear guides and pneumatic cylinders form part of the published machine design.
04Servo take-off+
The source describes a servo-operated take-off for transferring the printed glass.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Model | APL 4560 | APL 5075 | APL 6090 |
|---|---|---|---|
| Max. Printing Size | 450 x 600 mm | 500 x 750 mm | 600 x 900 mm |
| Min. Printing Size | 200 x 200 mm | 200 x 200 mm | 200 x 200 mm |
| Screen Frame Size | 680 x 980 mm | 730 x 1130 mm | 830 x 1280 mm |
| Printing Table Size** | 550 x 800 mm | 600 x 950 mm | 700 x 1100 mm |
| Power (KW) | 2.3 KW – 3.0 KW | 2.3 KW – 3.0 KW | 2.3 KW – 3.0 KW |
| Machine Size** | 950x1200x1700 mm | 950x1900x1800 mm | 1000x2100x1800 mm |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Glass dimensions, thickness and sheet handling
- Ink or coating system and intended end use
- Printing sequence, drying requirements and line layout
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
APL’s Semi Automatic Centering Glass Screen Printing Machine combines an adjustable printing table with pneumatic controls and linear guides. Automatic centring and micro-registration pins help establish the glass position before printing.
What should I share for a quotation?+
Please send glass dimensions, thickness and sheet handling; ink or coating system and intended end use; printing sequence, drying requirements and line layout. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
