APL COLLECTIONAPL-UV 2030 Spot & Full Coater
25 / 58
01 / Machine view
BUILT AROUND YOUR APPLICATION
Spot or full coating. Automatic sheet handling.
The APL-UV 2030 is an offline coating and curing machine for full and spot UV varnish, aqueous coatings and primers. A stream feeder and registration controls handle paper and board as the job moves through coating and drying.
The published design uses a robust cast-iron frame, hardened gears, vacuum transport and a lamp-cooling arrangement. Anilox coating, adjustable lays and PLC touchscreen controls support setup. Available configurations are described at 6,000 or 10,000 sheets per hour; the quotation confirms the selected model and operating conditions.

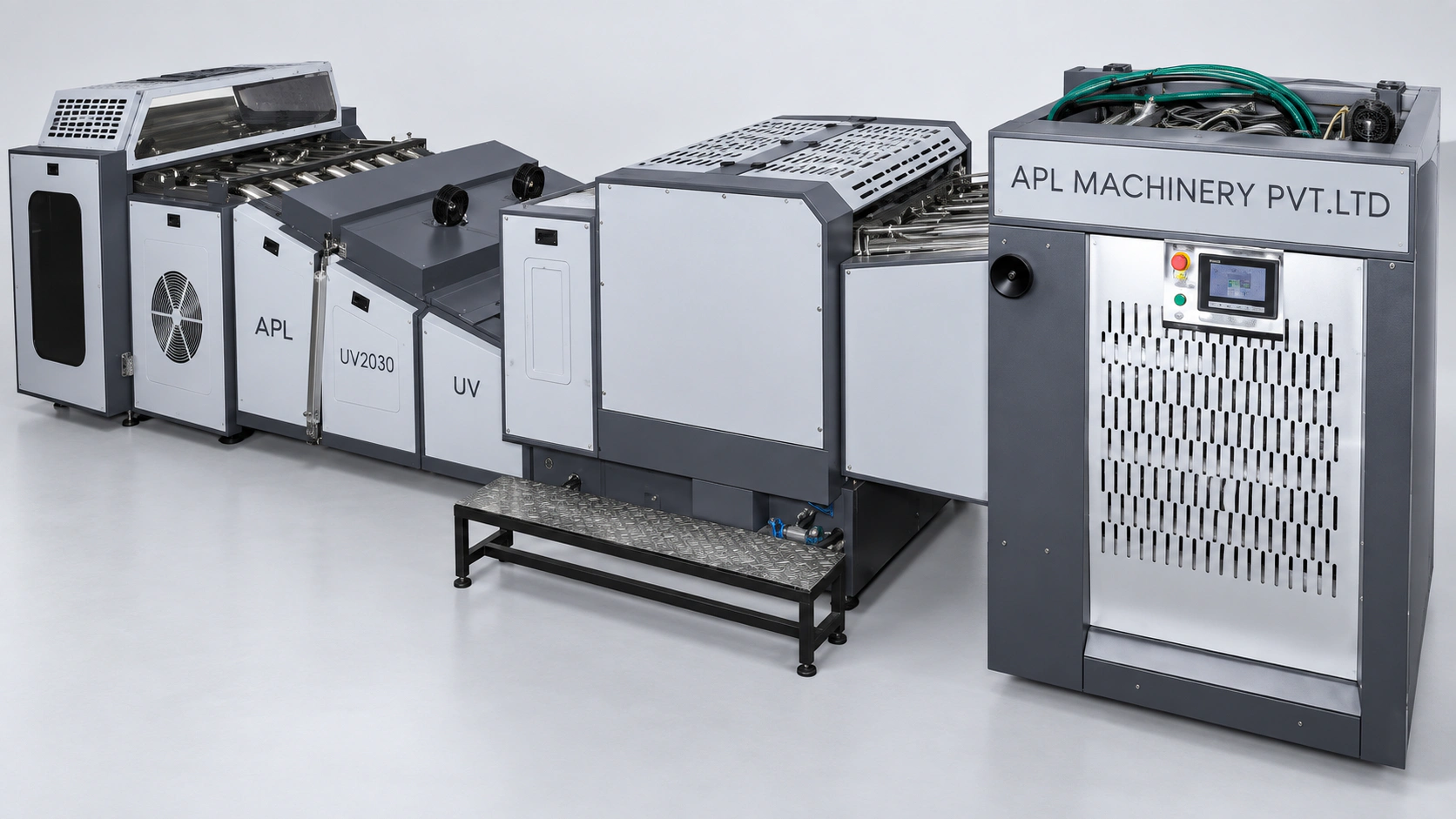

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Registration adjustment+
Side lays and micro-adjustable front lays support sheet registration.
02Automatic feeding+
A stream feeder and adjustable double-sheet detection handle the published stock range.
03Anilox coating system+
Pneumatic roller control, a doctor-blade assembly and quick roller change support coating setup.
04Drying configuration+
Discuss UV, IR and hot-air requirements for the chosen varnish or primer.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Configuration detail | Published product profile |
|---|---|
| Stock range | 80–450 gsm |
| Coating | Spot & full |
| Controls | PLC touchscreen |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Substrate format, basis weight and coating chemistry
- Full, spot, texture or other required finishing effect
- Target output and existing feeding or drying equipment
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
The APL-UV 2030 is an offline coating and curing machine for full and spot UV varnish, aqueous coatings and primers. A stream feeder and registration controls handle paper and board as the job moves through coating and drying.
What should I share for a quotation?+
Please send substrate format, basis weight and coating chemistry; full, spot, texture or other required finishing effect; target output and existing feeding or drying equipment. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
