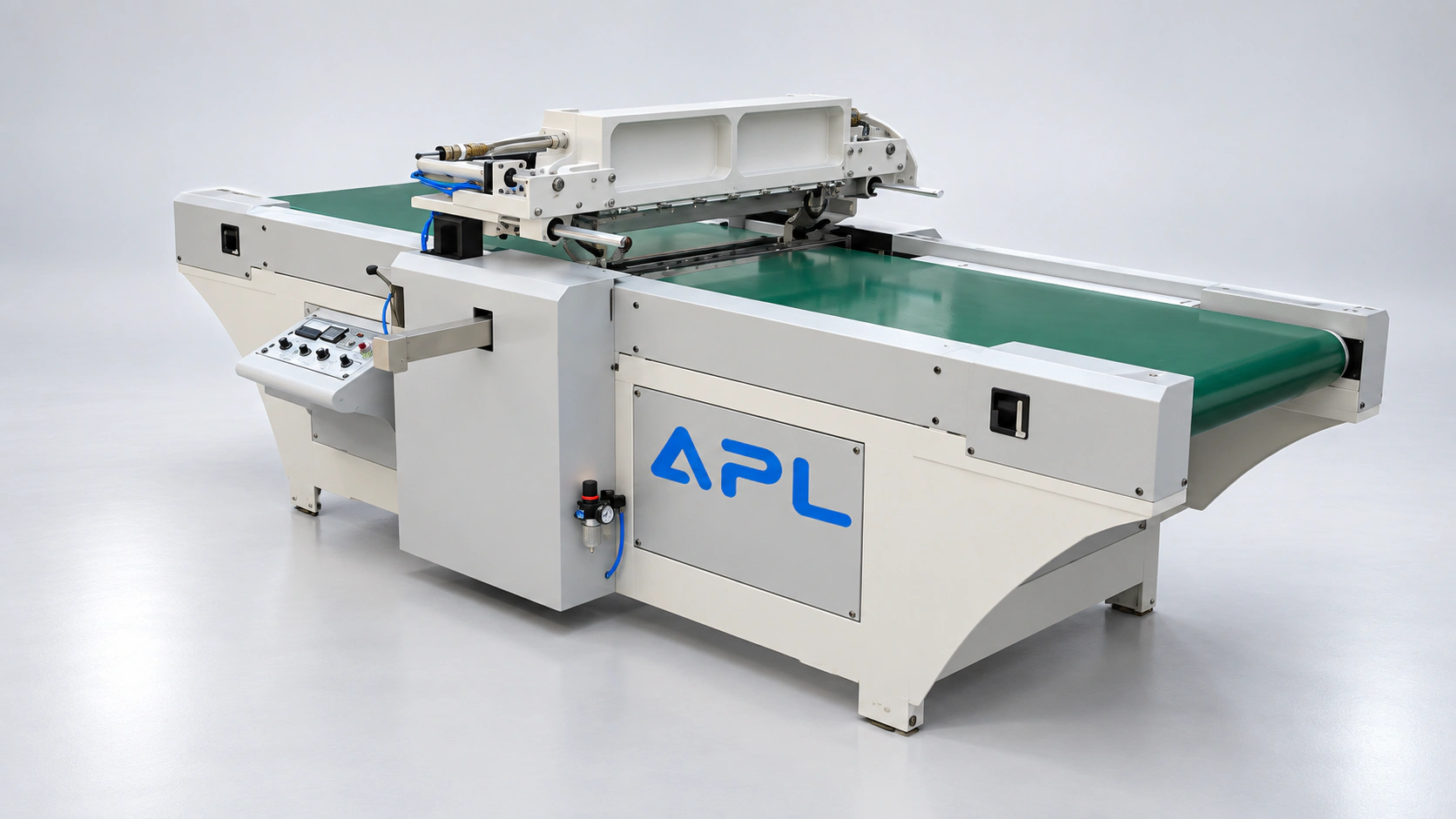

01 / Machine view
BUILT AROUND YOUR APPLICATION
A continuous curtain. A controlled coating.
The APL WCC Curtain Coater is designed for coatings with different viscosities. Removable coating heads are mounted with trolleys separated from the machine structure, allowing the coating arrangement to be configured around the production need.
Stainless steel tanks include temperature control to help maintain uniform viscosity. The reference assembly lists a conveyor drive and varnish pumps. Discuss the coating formulation, working width and target film deposit when selecting the curtain-coating process.

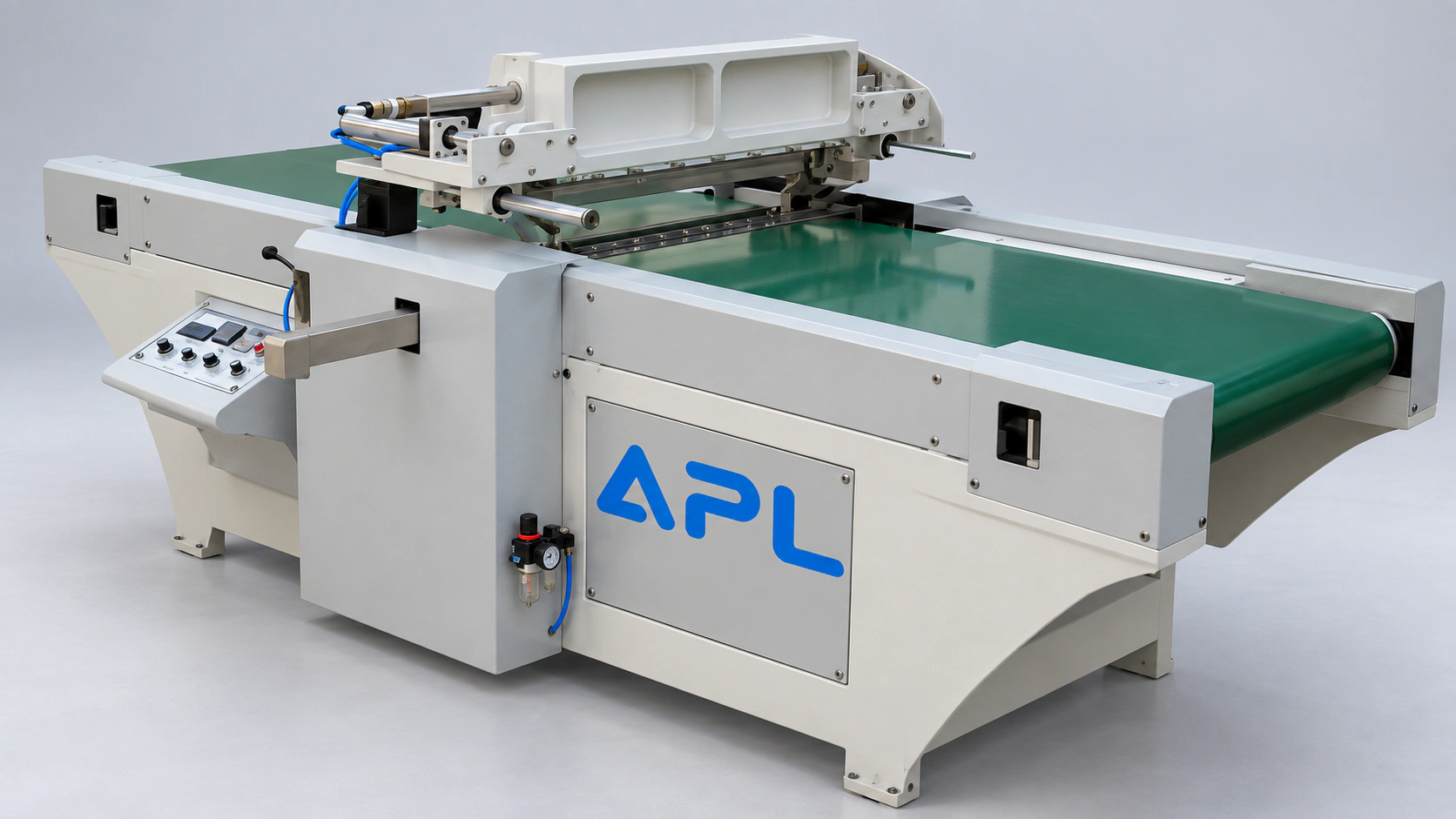

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Removable coating heads+
The published system includes heads with separate trolleys for handling and configuration.
02Temperature-controlled tanks+
Temperature control helps maintain the coating viscosity in the stainless steel tanks.
03Coating circulation+
Varnish pumps form part of the reference machine assembly.
04Continuous transport+
A conveyor carries the material through the coating stage.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Configuration detail | Published product profile |
|---|---|
| Process | Curtain coating |
| Tanks | Stainless steel |
| Control | Temperature / viscosity |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Board dimensions, thickness and handling method
- Coating or adhesive system and target surface finish
- Line speed, transfer height and available floor space
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
The APL WCC Curtain Coater is designed for coatings with different viscosities. Removable coating heads are mounted with trolleys separated from the machine structure, allowing the coating arrangement to be configured around the production need.
What should I share for a quotation?+
Please send board dimensions, thickness and handling method; coating or adhesive system and target surface finish; line speed, transfer height and available floor space. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
