APL COLLECTIONLarge Format Screen Printer for Wood
19 / 58
01 / Machine view
BUILT AROUND YOUR APPLICATION
Screen printing at full board scale.
This large-format screen printer is presented for 8 × 4 ft wood panels, with automatic feeding and centering. A four-pillar arrangement supports screen movement, while X–Y setting controls assist with registration.
The published features include pneumatic squeegee pressure and a print area of 96 × 48 inches. Frame dimensions and output figures vary within the source material, so the final screen frame, tooling and cycle requirement should be confirmed for your application.

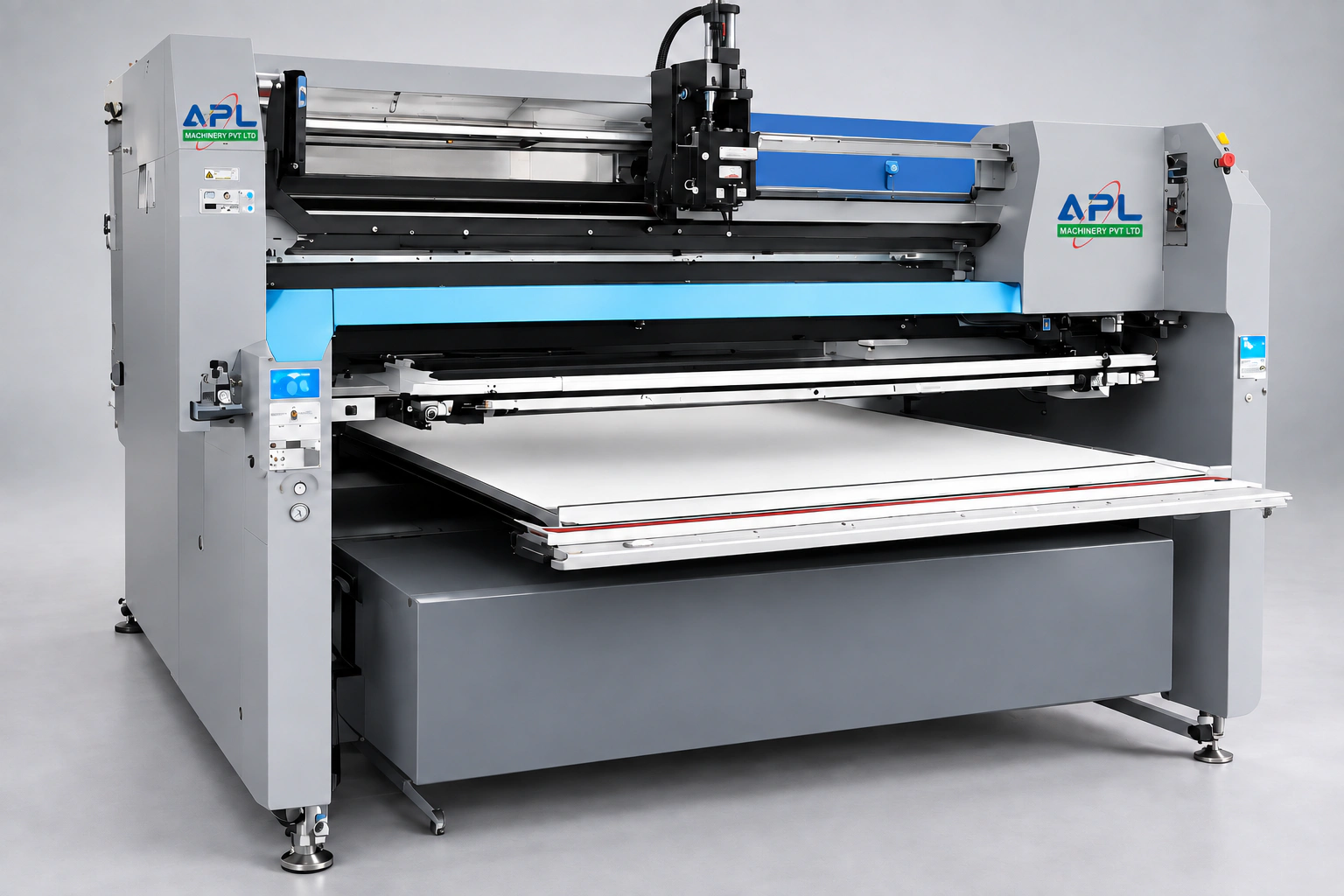

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Large-format print area+
The stated printing area is 96 × 48 inches for full-size board applications.
02Automatic positioning+
Feeding and centering functions are described in the published configuration.
03Four-pillar structure+
The machine supports the screen through a four-pillar arrangement.
04Registration and pressure+
X–Y setting controls and pneumatic squeegee pressure help establish the print setup.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Configuration detail | Published product profile |
|---|---|
| Print area | 8 × 4 ft |
| Structure | Four pillars |
| Handling | Auto feed & centering |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Board dimensions, thickness and handling method
- Coating or adhesive system and target surface finish
- Line speed, transfer height and available floor space
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
This large-format screen printer is presented for 8 × 4 ft wood panels, with automatic feeding and centering. A four-pillar arrangement supports screen movement, while X–Y setting controls assist with registration.
What should I share for a quotation?+
Please send board dimensions, thickness and handling method; coating or adhesive system and target surface finish; line speed, transfer height and available floor space. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
