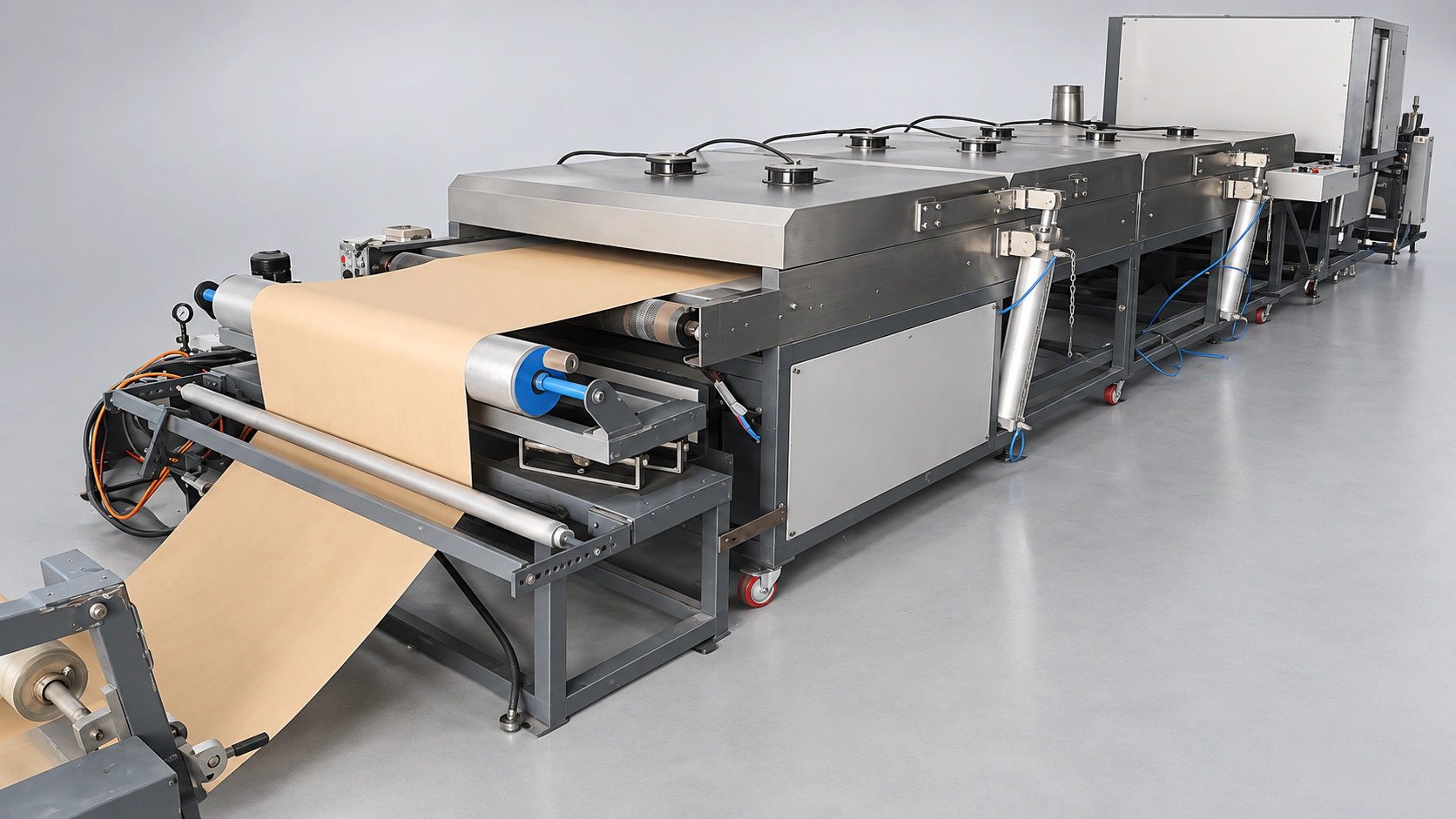

01 / Machine view
BUILT AROUND YOUR APPLICATION
Glitter coating, continuously applied.
APL’s Roll-to-Roll Glitter Coating Machine applies decorative glitter in a continuous web workflow. The reference configuration lists a 1,016 mm feed width, 966 mm coating width and a published speed of 20 metres per minute.
Automatic anilox engagement, web guidance and tension control coordinate coating and transport. The listed applications include paper, plastic film, EVA foam, ribbon and satin. The published paper-weight range is 70–150 gsm; other materials need a separate compatibility review with APL.

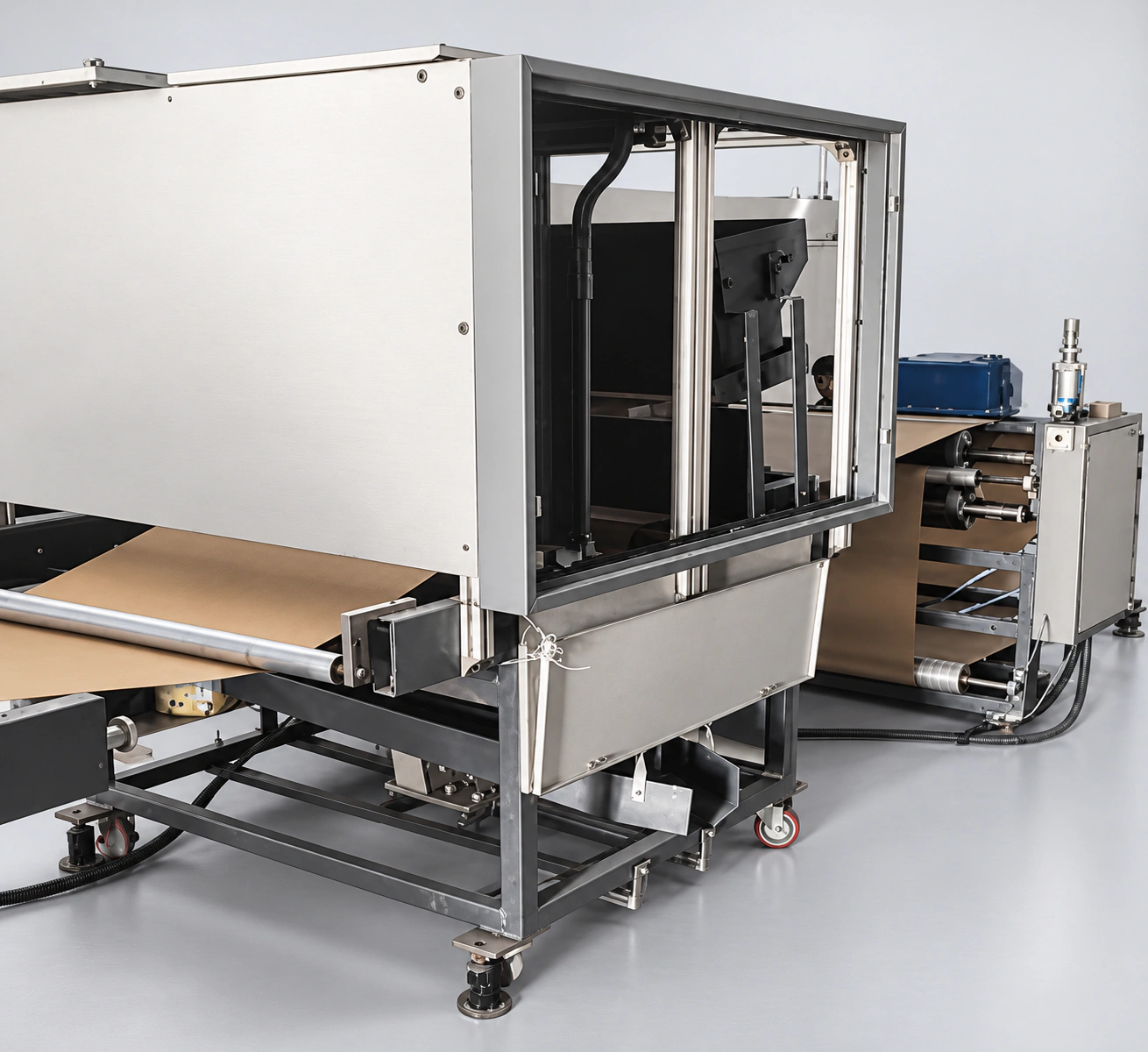

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Anilox control+
Automatic anilox on/off operation coordinates coating application.
02Web guidance+
A sensor-based web guide helps maintain the material path.
03Tension management+
Automatic tension control and a mechanical brake form part of the reference setup.
04Heated drying+
Finned heaters provide the listed drying arrangement after coating.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Specification | Reference configuration |
|---|---|
| Max. Paper Feeding Width | 1016mm/40 inch |
| Max. Printing Width | 966mm/38 inch |
| Max. Printing Speed | 20m/min |
| Published paper weight | 70-150 GSM |
| Adhesive Coating | Anilox Roller |
| Coating Impression | Automatic on-off |
| Web Alignment | Web Guide System (Sensor Control) |
| Un -Rewind Type | Auto Tension Control / Mechanical Brake |
| Un -Rewind Shaft | Air Shaft (Pneumatic) |
| Un -Rewind Roll Diameter | 800 mm |
| Pneumatic Pressure | 5/6 bar |
| Weight Approx. | 3000 kgs |
| Dryer/Heater | Finned Type |
| Dimensions (WxLxH)- | 1524 x 15240 x 1800 mm |
| Power Supply | 3 Phase/ 415V/ 50Hz |
| Total Power | 30 KW |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Material specification and intended final product
- Required coating, decoration or lamination process
- Working width, throughput and handling arrangement
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
APL’s Roll-to-Roll Glitter Coating Machine applies decorative glitter in a continuous web workflow. The reference configuration lists a 1,016 mm feed width, 966 mm coating width and a published speed of 20 metres per minute.
What should I share for a quotation?+
Please send material specification and intended final product; required coating, decoration or lamination process; working width, throughput and handling arrangement. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
