APL COLLECTIONFully Automatic Screen Printer
29 / 58
01 / Machine view
BUILT AROUND YOUR APPLICATION
Automatic screen printing for demanding finishes.
APL’s fully automatic screen printer combines an automatic feeder with swing- or stop-cylinder configurations. Front and side lays provide registration, while cylinder vacuum supports sheet handling through the print process.
The machine is described for screen printing and speciality finishes including spot UV, cold foil, cast & cure, glitter and scratch-card coating. Published formats include 20 × 30 and 30 × 40 inches, with output up to 3,600 sheets per hour depending on the job. Drying choices include LED UV, conventional UV, hot air and wicket systems.

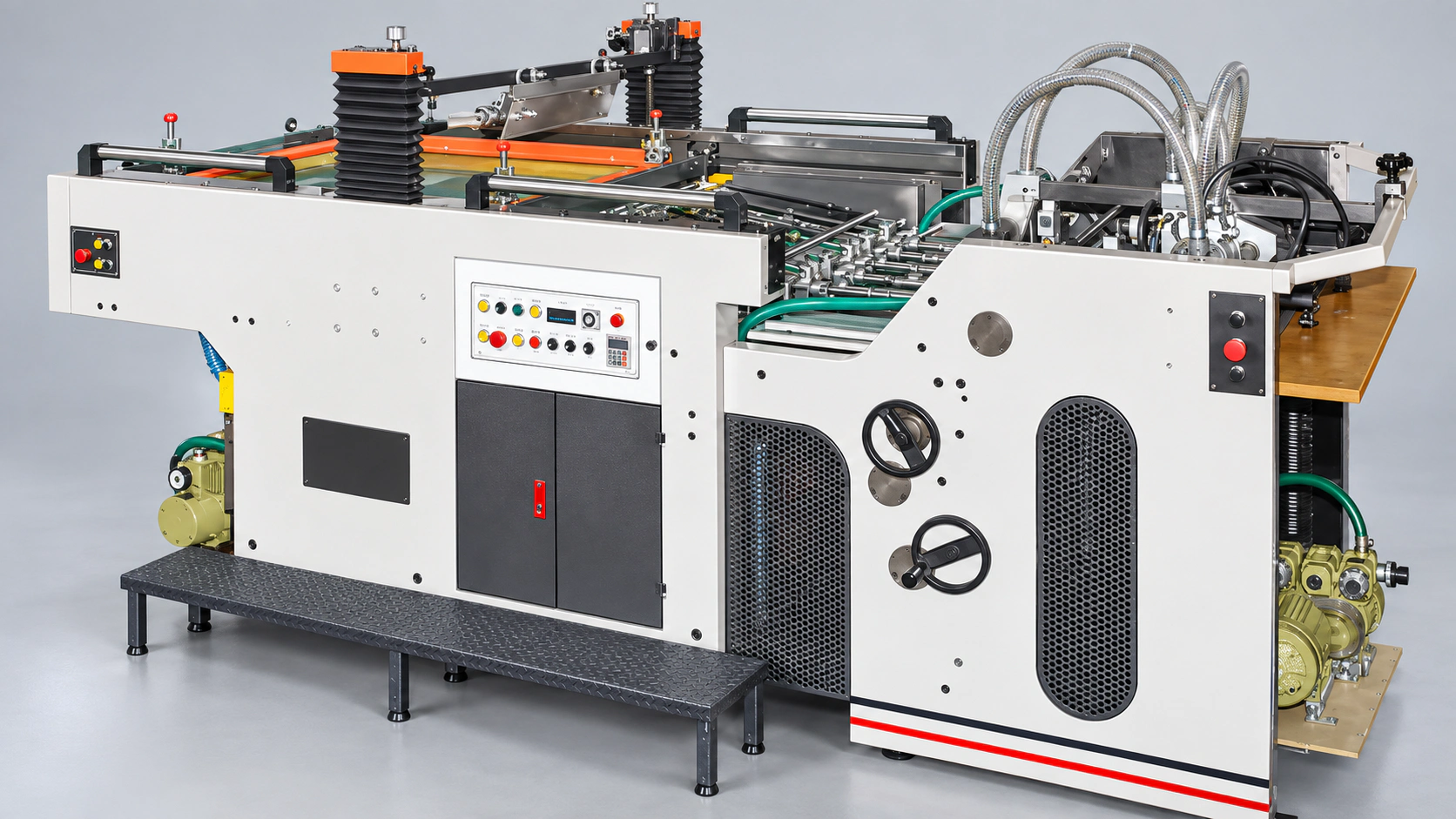

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Automatic sheet feeding+
A box feeder with vacuum handling supports continuous sheet-fed production.
02Registration control+
Side and front lays position the sheet before printing.
03Screen access+
An up/down squeegee and floodbar arrangement supports screen removal and job changes.
04Drying choices+
Pair the press with the drying technology required by the ink, coating and material.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Specification | Published range |
|---|---|
| Maximum print areas | 20 × 30 / 30 × 40 in |
| Published output | Up to 3,600 sheets/hour |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Material shape, dimensions and printable area
- Artwork detail, colour count and registration needs
- Screen dimensions, ink and drying or pretreatment process
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
APL’s fully automatic screen printer combines an automatic feeder with swing- or stop-cylinder configurations. Front and side lays provide registration, while cylinder vacuum supports sheet handling through the print process.
What should I share for a quotation?+
Please send material shape, dimensions and printable area; artwork detail, colour count and registration needs; screen dimensions, ink and drying or pretreatment process. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
