APL COLLECTIONDouble Lamp UV Curing System
11 / 58

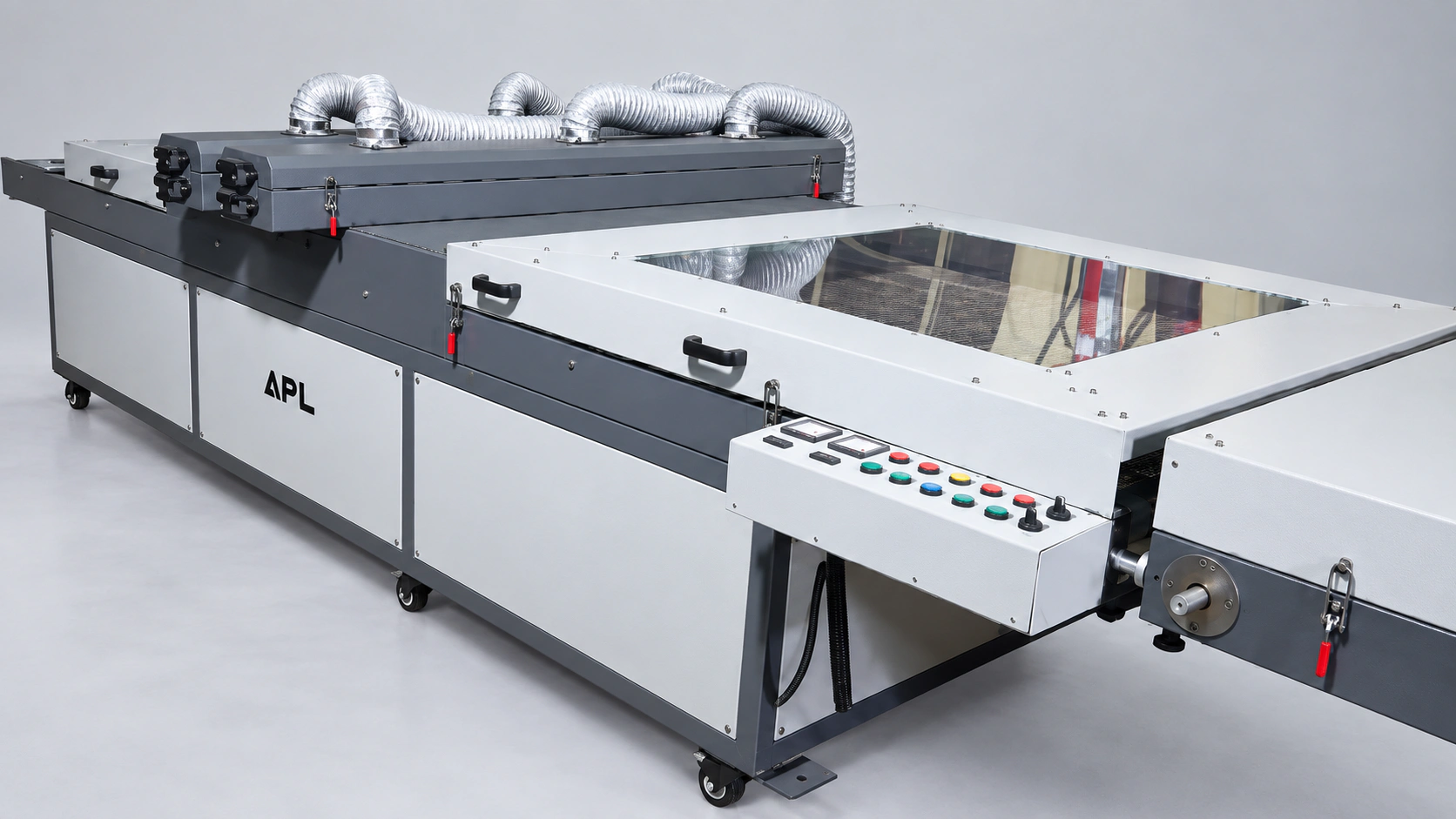

01 / Machine view
BUILT AROUND YOUR APPLICATION
Adjust the UV output to the job.
APL’s double-lamp UV conveyor combines two UV lamps with adjustable conveyor speed and selectable UV-intensity levels. The published 50-inch configuration is intended to connect with printing or coating equipment for inline processing.
The machine includes thermal management, a Teflon conveyor belt and operating protections such as lamp shutoff when the hood is lifted. APL also describes lamp-hour display, hibernation mode and optional line-handling arrangements. Confirm the required modules and handling configuration in the quotation.

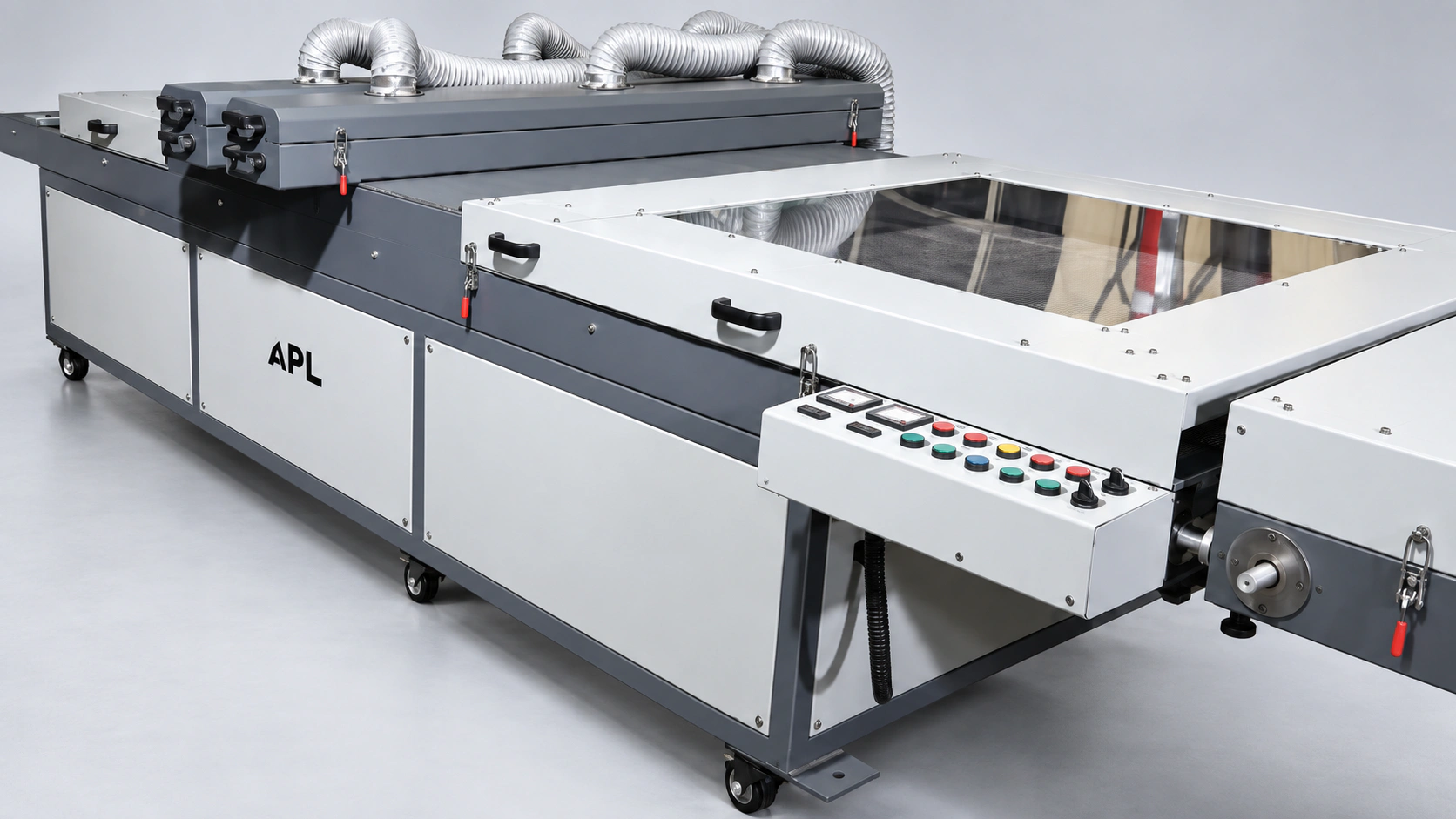

A CLOSER LOOK / Detail viewENGINEERING IN THE DETAILSPurpose in
Purpose in
every detail.
01Selectable output+
Choose among the published UV-intensity levels to suit the curing process.
02Variable conveyor speed+
An AC drive allows the conveyor speed to be adjusted for the job.
03Thermal management+
A suction blower and cooling arrangement manage heat around the curing section.
04Operating protections+
The published features include hood-related lamp shutoff, emergency control and lamp-hour indication.
THE TECHNICAL PICTUREExplore.
Explore.
Understand.
Specify.
Published reference information for your technical conversation.
| Configuration detail | Published product profile |
|---|---|
| Published format | 50 inch |
| UV arrangement | Two lamps |
| Intensity levels | 25 / 50 / 75 / 100% |
APL reference reviewed 2026-09-09. Specifications and options require current confirmation.
TAKE A CLOSER LOOKFrom the page.
From the page.
Into the picture.
Explore the available film and original product literature, then speak with APL about your application.
MAKE THE NEXT CONVERSATION COUNTBring the application.
Bring the application.
We’ll explore
the possibilities.
What to share with APL
- Board dimensions, thickness and handling method
- Coating or adhesive system and target surface finish
- Line speed, transfer height and available floor space
GOOD QUESTIONS. BETTER DECISIONS.Before your
Before your
next move.
Which applications is this machine designed for?+
APL’s double-lamp UV conveyor combines two UV lamps with adjustable conveyor speed and selectable UV-intensity levels. The published 50-inch configuration is intended to connect with printing or coating equipment for inline processing.
What should I share for a quotation?+
Please send board dimensions, thickness and handling method; coating or adhesive system and target surface finish; line speed, transfer height and available floor space. Include a sample or representative artwork when available.
Can APL help with installation and training?+
APL offers installation, operator training and after-sales assistance. Discuss the support scope, location, schedule and any retrofit requirements with the team when finalising your machine configuration.
